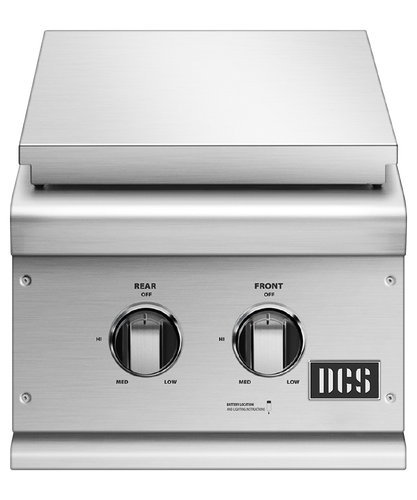

14" Series 7 Double Side Burner, Natural Gas, pdp
BGC132-BI-N

14" Series 7
Double Side Burner

Natural Gas

  • Series 7
The dedicated DCS Side Burners allow separate cooking activities to take place alongside the grill. Constructed of heavy stainless steel, DCS side burners are rated at a powerful 17,000 BTUs, and are available in single or double burner configurations. Available in Natural and LP Gas.
14" Series 7
Double Side Burner
Stainless Steel, Natural gas
Where to Buy
Finish
Stainless Steel
Fuel Type
Natural gas
starting from $1,199.00
Where to Buy

14" Series 7
Double Side Burner

Natural Gas

Natural gas; connects to gas mains. This model is also available in LPG (model BGC132-BI-L)

Height 10 5⁄8 "
Width 14 9⁄16 "
Depth 26 5⁄8 "

Specifications

Height
10 5⁄8 "
Width
14 9⁄16 "
Depth
26 5⁄8 "

Burners

Burners Attributes Value
Number of side burners 2

Features

Features Attributes Value
Ignition system Spark
Metal dials

Finish

Finish Attributes Value
Material 304 grade stainless steel
Weather resistant

Gas Requirements

Gas Requirements Attributes Value
1/2" NPT male with 3/8" in flare adapter
Gas type NG
Operational pressure 4" W.C.
Supply Pressure 6" to 9" W.C

Installation Dimensions

Installation Dimensions Attributes Value
Cutout depth (proud) 22 3⁄4"
Cutout height (proud) 10 1⁄8"
Cutout width (proud) 12 1⁄8"

Performance

Performance Attributes Value
Side burner power 17000 BTU

Power requirements

Power requirements Attributes Value
Grill power supply 1.5V battery for ignition

Product dimensions

Product dimensions Attributes Value
Depth 26 5⁄8"
Height 10 5⁄8"
Packaged weight 32lbs
Width 14 9⁄16"

Warranty

Warranty Attributes Value
Parts and labor 2 years

Resources

Please note: Videos are not for downloading purposes

Design Planning

  • Data Sheet

    14" Series 7 Double Side Burner, Natural Gas, DesignPlanning-DCSUS-Parent1

    • Datasheet Side Burner

      14" Series 7 Double Side Burner, Natural Gas, DesignPlanning-DCSUS-Child1

CAD Downloads

General

Installation
