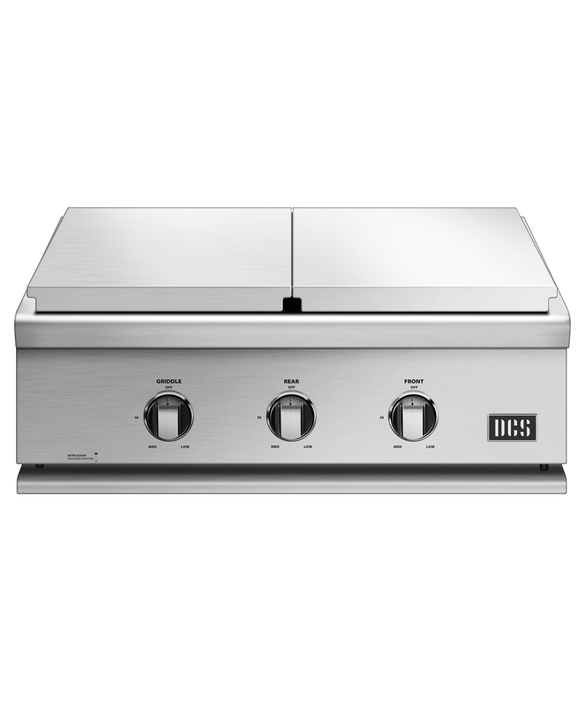

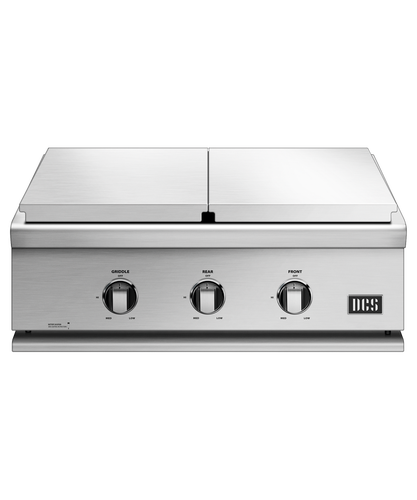

30" Series 7 Griddle/Double Side Burner, pdp
BFGC-30BGD-L

30" Series 7
Griddle/Double Side Burner

LPG

  • Series 7
With the Dual Side Burner/Griddle unit of the Liberty Collection you have the ability to prepare delicious dishes that are not customarily cooked outside. Add pancakes and bacon to your outdoor breakfast menu with ease using the large griddle surface. This unit even allows you to effortlessly host an omelet bar in your outdoor kitchen. Available in Natural or LP Gas. Cart sold separately.
Finish
Stainless Steel
Fuel Type
LPG
starting from $3,499.00

30" Series 7
Griddle/Double Side Burner

LPG

LPG gas; requires external gas bottles. This model is also available in Natural Gas (model BFGC-30BGD-N)

Height 1012 "
Width 30 "
Depth 2658 "

Specifications

Height
1012 "
Width
30 "
Depth
2658 "

Accessories (sold separately)

Accessories (sold separately) Attributes Value
Optional cart mount CAD1-30E

Burners

Burners Attributes Value
Number of U-burners 1
Number of side burners 2

Cooking Surface Area

Cooking Surface Area Attributes Value
Total cooking area 244sq.in.

Features

Features Attributes Value
Ignition system Spark
Metal dials
Side burners

Finish

Finish Attributes Value
Material 304 grade stainless steel
Weather resistant

Gas Requirements

Gas Requirements Attributes Value
1/2" NPT male with 3/8" in flare adapter
Gas type LPG
LP hose with regulator and Type 1 connector
Operational pressure 11" W.C.
Supply Pressure 12" to 14" W.C.

Installation Dimensions

Installation Dimensions Attributes Value
Cutout depth (proud) 22 34"
Cutout height (proud) 10 18"
Cutout width (proud) 28 12"

Performance

Performance Attributes Value
Side burner power 17000 BTU
U-burner power 12000 BTU

Power requirements

Power requirements Attributes Value
Grill power supply 9V Battery for Ignition

Product dimensions

Product dimensions Attributes Value
Depth 26 58"
Height 10 12"
Packaged weight 104lbs
Width 30"

Warranty

Warranty Attributes Value
Parts and labor 2 years

Resources

Please note: Videos are not for downloading purposes

Design Planning

CAD Downloads

General

Installation
